Small Baffled Anti-glare Recessed COB Downlight V6214

  • MOQ :1 piece
  • Shipping Time :7 days delivery from Luxembourg
  • Payment :T/T;Alipay;Paypal
  • Warranty :7 years
  • Finishing Color :White/black
  • Color Temperature :2700K/3000K/4000K/5000K
  • Color Rendering Index :Ra80/Ra97
  • Dimension :Ø90mmX86mm
  • Cut-Out Size :Ø77mm
  • Brand :One Percent
  • Certification :CE,RoHS,SAA
  • Inquire Online
Description OptionAddition

Small Baffled Anti-glare 8W COB LED Downlight V6214
Making the lighting more gentle and natural

Home is a warm haven where everything looks very comfortable and relaxed. Thus, according to the theme "Warm Home", One Percent bring us this kind of anti-glare and eyes protecting baffled recessed COB downlights, so people can enjoy the soft lighting and feel comfortable and relaxed in the anti-glare LED recessed down lighting environment.

Technical Data

Model V6214 Luminaire type COB downlight
Power 8W Mains voltage AC 220-240V, 50/60Hz
Power factor(PF) >0.9 Light source details SHARP COB LED
Luminous flux 530lm(3000K) Color rendering index(CRI) Ra>80/Ra>97
Color temperature(CCT) 2700K/3000K/4000K/5000K Lamp useful lufe 40,000 hours
Beam angle 40° Driver TRIDONIC driver
Dimmable Dimmable with leading and trailing edge Radiator Die-cast aluminum
Lens PMMA Operating temperature range -20°C to 50°C
IP rateD IP44 Finishing color White/black
Orientation Fixed Special features Baffled anti glare
Product dimensions Ø90xH86mm
Cut-out size Ø77mm
Certifications CE, RoHS, SAA Warranty 7 years

Product Overview

Recessed COB downlight is commonly used in indoor lighting, and it is installed into the ceiling cut-out hole so that the light seems to be shine downward from the hole. As LED lighting is energy efficient and with long lifespan, people usually use them to replace the bulbs to apply the modern design. High quality are assured by the Tridonic driver, Sharp/ Citizen chip and also the Die-cast aluminum good heat dissipation radiator. 40,000 hours lifetime and 7 years warranty are provided as well.

Product Details & Advantages

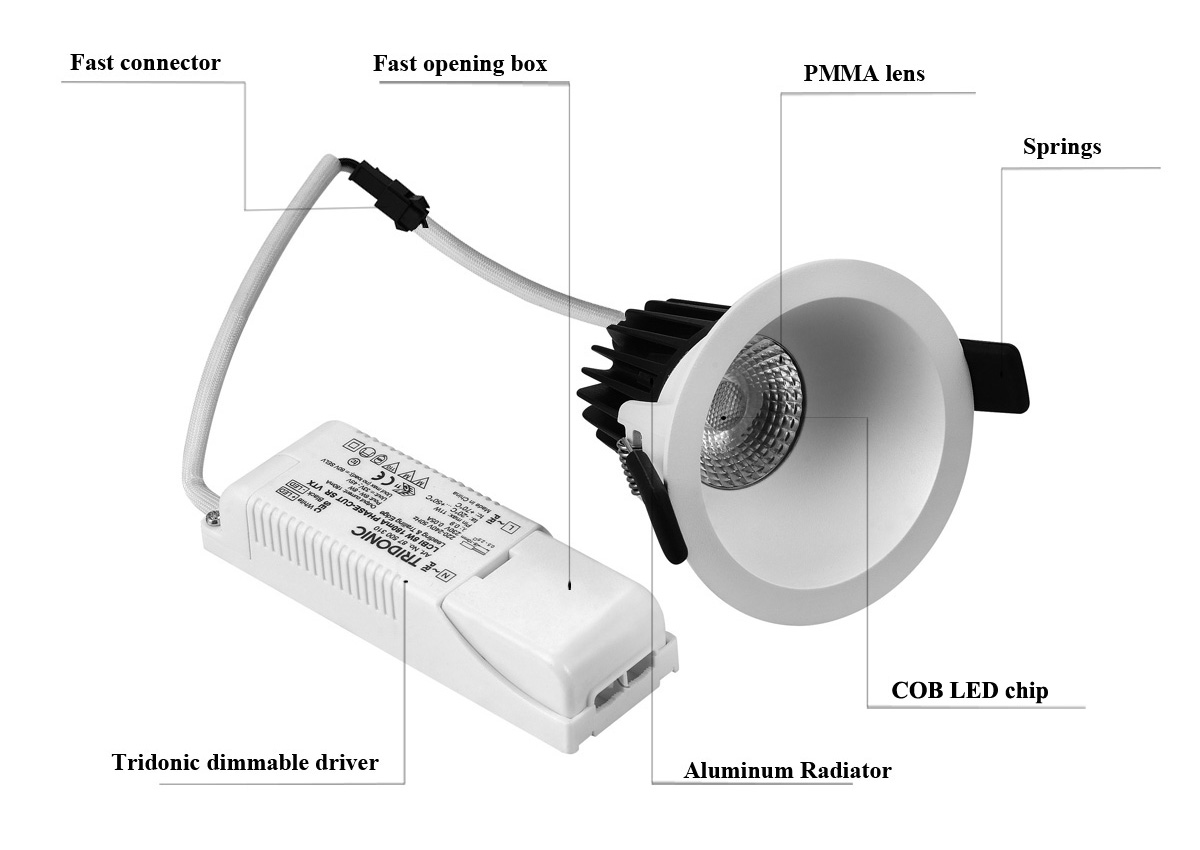

a. TRIDONIC driver, SHARP light source & high quality accesories

How can people tell the quality of LED downlights from thousands of the products in the market?

There are three significant components that differ the lights: (1) LED driver, (2) LED chip, (3) Heat radiator. One Percent's LED COB downlights are made with Tridonic driver, Sharp/ Citizen chip and die-cast aluminum radiator, high quality and the best craft finishes are assured for all our lighting products.

The lighting components count for the quality, and our installation design count for the user satisfaction. Safety, Convenience and Intelligent are always the main focus in our design.

b. Anti-glare: reducing glare lighting and bringing comfortable lighting effect

How is it feel when looking into the sun?

That is similar to the looking into the non anti-glare downlights. The strong lighting source makes the eyes uncomfortable and sometimes brings eye strains.

Then how to reduce the glare?

The V6214 COB downlight reduces glare with the help of the baffled trim, where the lighting LED chip cannot be seen directly.

Easy Installation

1. Cut a hole on the ceiling according to the instruction

2. Cut off power to avoid electric shock

3. Wiring the driver to the electric wire

4. Connect the downlight and the driver

5. Install the light into the hole

6. Turn on the power and check if well installed

Small Baffled Anti-glare 8W COB LED Downlight V6214
Making the lighting more gentle and natural

CCT, CRI and finishing colors are the basic specification or choice when purchasing COB downlights. Here below is for your reference.


1.Color temperature (CCT): 2700K/3000K/4000K/5000K

People always divide the color temperature into warm white (2700K -3500K), cool white (3500K - 4500K) and daylight (4500K-6500K). Different CCT brings different lighting experience, and the application should differs in different scenes. How does color temperature affect the appearance of the room?


2.Color rendering index (CRI): CRI>80/CRI>97

The CRI100 is the highest number that represent the best color appearance under the incandescent light. Objects under low CRI cannot appear the best color of its own, while a higher CRI can better solve the problem, and bring you the perfect color enjoyment. Do not let the light fade your color, to enjoy the colorful life, chose your best CRI.


3.Finishing color: white/black

Small Baffled Anti-glare 8W COB LED Downlight V6214
Making the lighting more gentle and natural

One Percent pursues innovation and profession that adding new lighting technology and convenient design on the basic COB downlights. This kind of recessed downlight V6214 can be compatible with smart springs, emergency backup module, and warm dimming lighting technology which have been patented.

a. Smart springs: a smart device for fast installation to save time and cost.

*Why use Smart Springs to replace the common springs?
With smart springs: LED recessed down light can fix itself on the ceiling automatically.

Without smart springs: You must fix the down light yourself on the ceiling.

For more about One Percent’s smart springs, please be kind to (click here).

Emergency backup module: providing 3 hours common lighting in case of power cut.

*Why you should have emergency backup module adding on your LED recessed COB downlight?
Suppose you are cooking at kitchen, suddenly the power cut happens, with the emergency lighting you can enjoy cooking as usual, instead of just waiting for the electricity coming, or even getting hurt during darkness. The emergency backup module is compatible with all One Percent 8W LED downlights.

For more about One Percent’s emergency backup module, please be kind to (click here).

Warm dimming lighting technology: warm white (2000K to 3000K) and dimming at the same time with dimmer.

More information about “what is warm dimming?” & “benefit”, please be kind to (click here).
